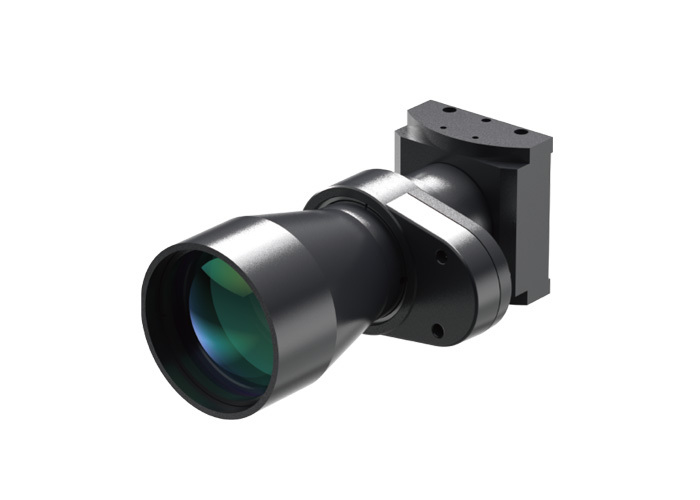

C Mount Liquid Oblique Telecentric Lens Series Large Depth Of Field

Product Details:

Place of Origin:	China
Brand Name:	linkhou

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5000-5W
Packaging Details:	Carton
Delivery Time:	5-8 Weeks
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

WD (mm):	106-122	DOF (mm):	7.8
TV Distortion (％):	≤0.1	Telecentricity (°):	≤0.1
Mount:	C
Highlight:	Liquid Oblique Telecentric Lens , Liquid C Mount Telecentric Lens , Liquid Machine Vision Lens

Liquid Oblique Telecentric Lens Series

Scheimpflug adjustment,used for inclination measurement
Linear stretching in the direction of inclination can be corrected
Fast focus in milliseconds
Focus without mechanical movement
High resolution, Large depth of field
Excellent telecentricity, Ultra low distortion
Suitable for high-end inspection and precision measurement

C Mount Liquid Oblique Telecentric Lens Series Large Depth Of Field 0

C Mount Liquid Oblique Telecentric Lens Series Large Depth Of Field 1

C Mount Liquid Oblique Telecentric Lens Series Large Depth Of Field 2
