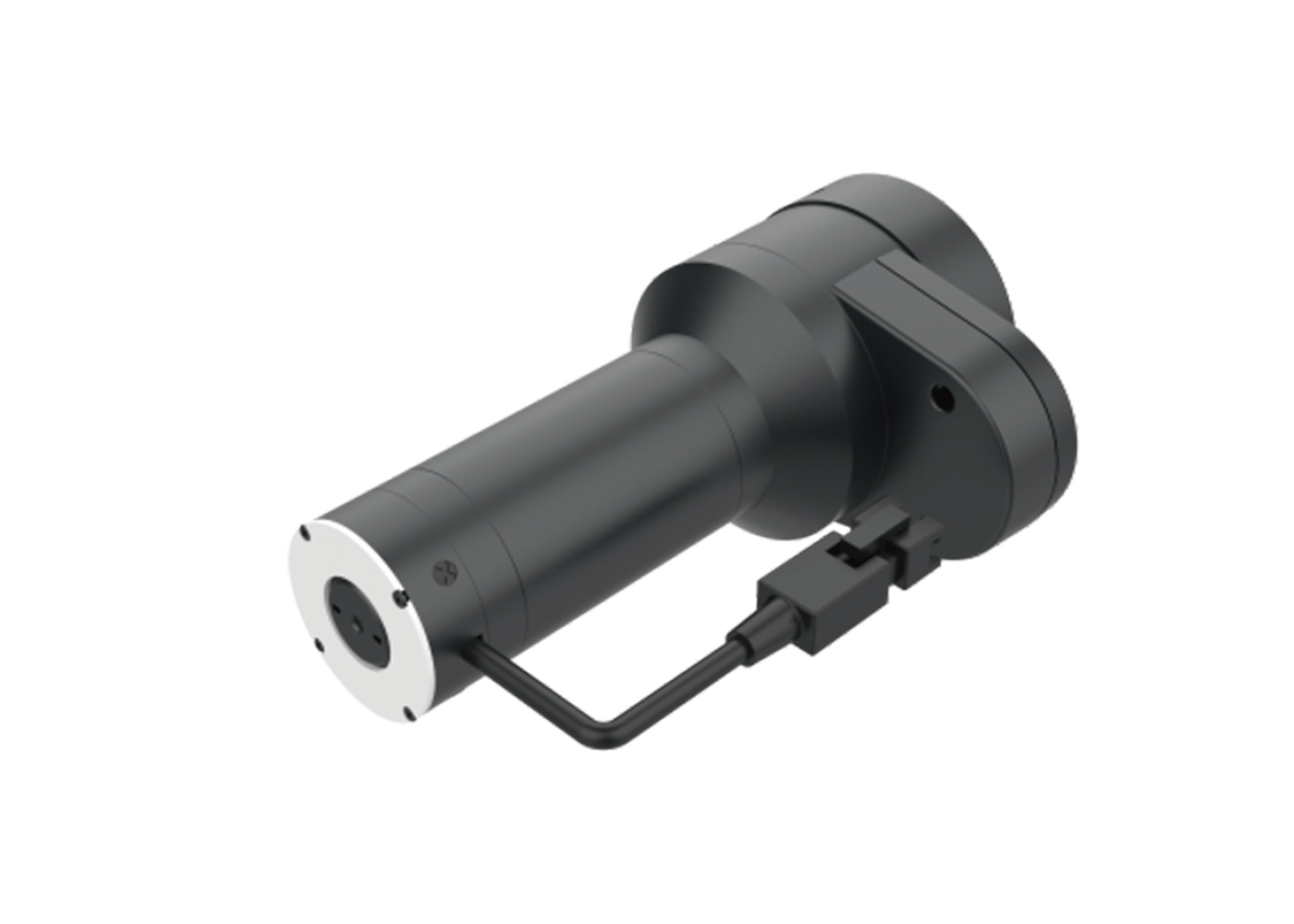

360° Liquid Inner Wall Measurement Lens C Mount Φ30×114.7 1-60mm WD

360° Liquid Inner Wall Measurement Lens C Mount Φ30×114.7 1-60mm WD

  • 360° Liquid Inner Wall Measurement Lens C Mount Φ30×114.7 1-60mm WD
360° Liquid Inner Wall Measurement Lens C Mount Φ30×114.7 1-60mm WD
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5000-5W
Packaging Details: Carton
Delivery Time: 5-8 Weeks
Payment Terms: T/T
Supply Ability: 100
Contact Now
Detailed Product Description
WD (mm): 1-60mm MTF30: ≥ 50
Effective F Number: 8.3 Wavelength Range (nm): 450-650
Mount: C Dimensions （mm×mm）: Φ30×114.7
Object Field Of View（mm X Mm) Diameter X Depth 2/3” 8.45x7.07: 3.0×1.0--120×190
Highlight:

Liquid Inner Wall Measurement Lens

,

360° Variable Focus Liquid Lens

,

60mm WD Liquid Telecentric Lens

360° Liquid Inner Wall Measurement Lens





Shoot at the top of the hole, which can simultaneously measure the images of the
inner wall and bottom of the cavity.
Suitable for detecting the bottom and inner wall of cavities an d container holes
Integrated liquid lens, which can achieve fast focusing on diffe rent inner diameters.
and depths, improve detection speed, and expand detection range.
The minimum measurable inner diameter can be extended to 3-4mm,
and the maximum ratio of measurable depth to inner diameter can reach 6:1

360° Liquid Inner Wall Measurement Lens C Mount Φ30×114.7 1-60mm WD 0

360° Liquid Inner Wall Measurement Lens C Mount Φ30×114.7 1-60mm WD 1
