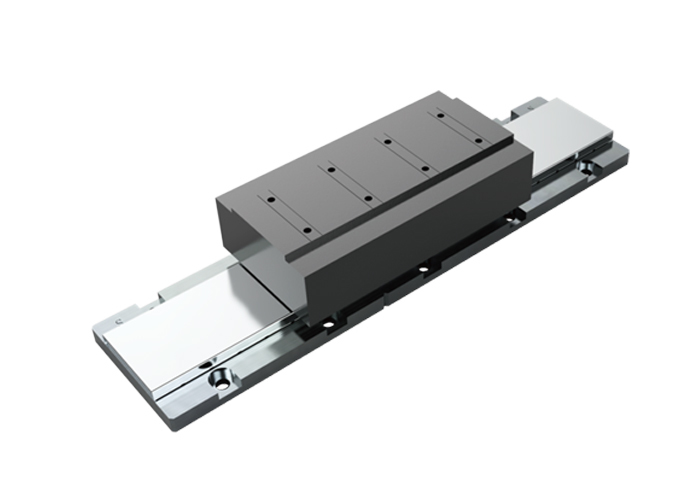

High Force Density BFMA Series High Precision Linear Stage Ironcore Design

Advantages:

High force density, laminations are used to concentrate the flux field.
The ironcore design is economically attractive because only one row of magnet material.
Laminations and large surface area allows good heat dissipation.
Modular magnet tracks and unlimited length of travel.

Notes: All specifications are for reference only.

1. Maximum percentage of peak force and current is 5% during working cycle.
2. Continuous force and current based on coil temperature maintained at 100℃.
3. Continuous force reflects motor thrust force performance.
4. Motor constant is a measure of efficiency.

5. The maximum theoretical acceleration value can be calculated according to the peak force and coil mass. In order to calculate the actual acceleration of each application, the additional weight of the load, the bearing type and design scheme, the impact specifications of the feedback component as well as the driver peak current should be considered.
6. Winding type C1,C2,C3 are selected according to your speed requirement.

BFMA06 Series

BFMA12 Sseries
