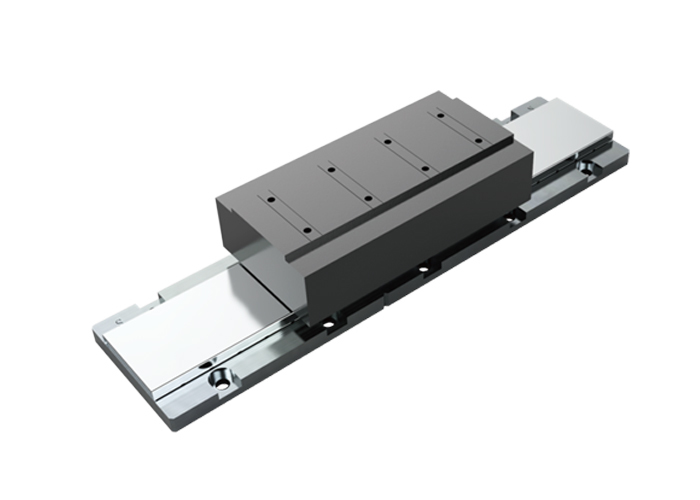

BFMC Series Direct Drive Linear Motor 15.6-105N/Arms Force Constant

Notes: All specifications are for reference only.

1. Maximum percentage of peak force and current is 5% during working cycle.
2. Continuous force and current based on coil temperature maintained at 100℃.
3. Continuous force reflects motor thrust force performance.
4. Motor constant is a measure of efficiency.

5. The maximum theoretical acceleration value can be calculated according to the peak force and coil mass. In order to calculate the actual acceleration of each application, the additional weight of the load, the bearing type and design scheme, the impact specifications of the feedback component as well as the driver peak current should be considered.

BFMC03 Series

BFMC06 Series

BFMC09 Series
