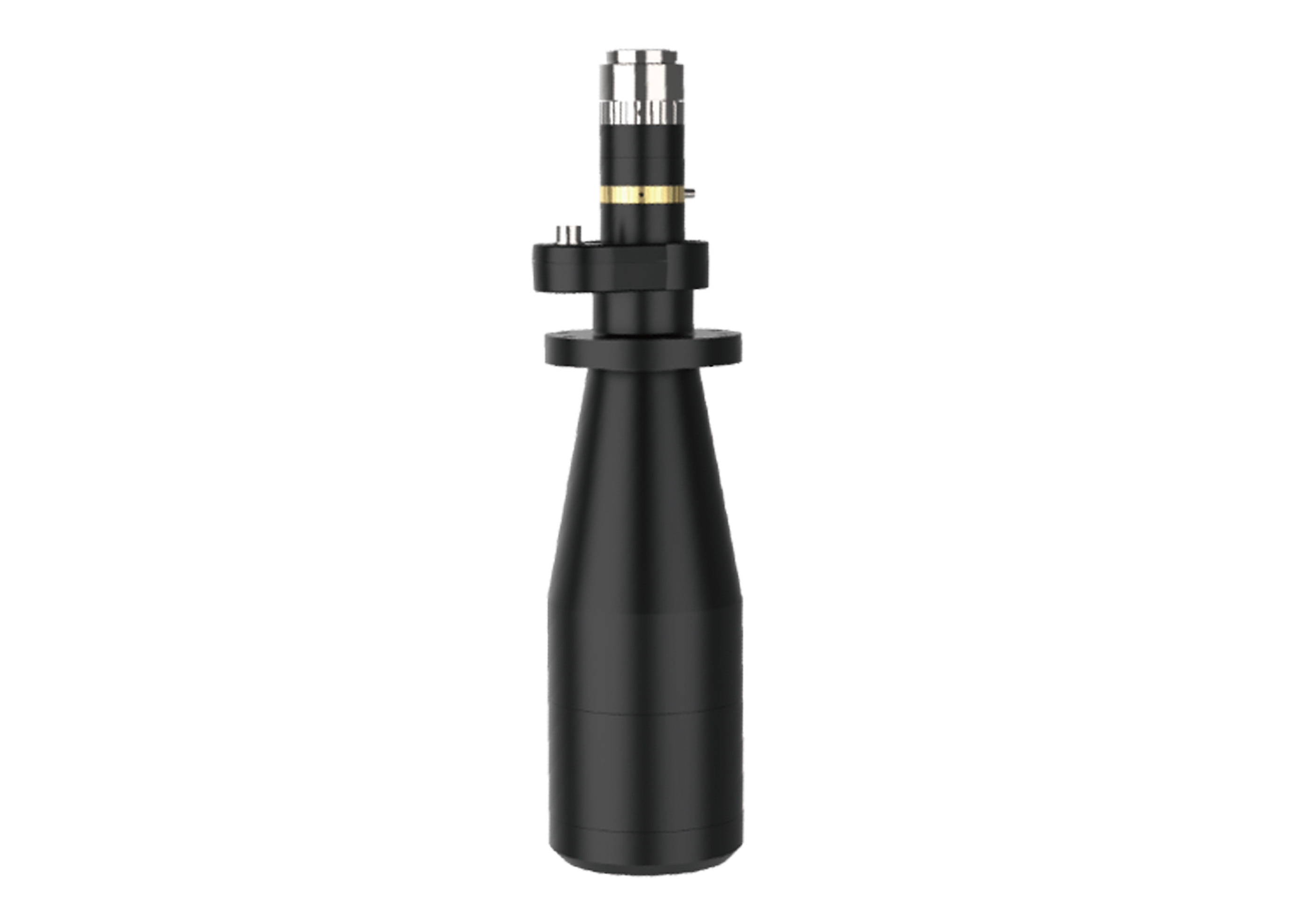

Name: 360° Liquid Telecentric Lens Refraction Measuring Outer Wall Lens C Mount
Brand: Suzhou Linkhou Robot Co., Ltd.
Price: 2,502.00 USD
Availability: InStock

Home Products Liquid Telecentric Lens

360° Liquid Telecentric Lens Refraction Measuring Outer Wall Lens C Mount

$360° Liquid Telecentric Lens Refraction Measuring Outer Wall Lens C Mount$

$360° Liquid Telecentric Lens Refraction Measuring Outer Wall Lens C Mount$

Product Details:

Place of Origin:	China
Brand Name:	linkhou

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5000-5W
Packaging Details:	Carton
Delivery Time:	5-8 Weeks
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

MTF30:	90	WD (mm):	1-30
Effective F Number:	8.3	Wavelength Range (nm):	450-650
Mount:	C
Highlight:	360° Liquid Telecentric Lens , Liquid Telecentric Lens C Mount , Outer Wall Telecentric Lens

360°Liquid Refraction Measuring Outer Wall Lens

A single camera can simultaneously measure the top surface and 360° external side image of the measured object
Side viewing Angle up to 25°
The image is continuous without stitching
Integrated liquid lens, with variable aperture, can achieve fast focus for different outer diameters and heights, improve the detection speed and accuracy; The measured minimum outer diameter is extended to 5mm
It has the function of measuring the inner wall lens at long working distance, especially suitable for detecting the inner bottom surface of the small bottle
